Factory directly Ppgi Roofing Sheets - 17-4PH 630 1.4542 H900 forging ring according to drawings – Huaxin Detail:

1. Production Description:
Standard:AMS 5643 H900
Grade:17-4PH, US630, 1.4542, X5CrNiCuNb17-4-4.
Processing: Forging, machining
OEM: can customized according to client’s drawings or request.

1) AMS 5643 (17/4 PH) is an American aerospace grade stainless steel with 4% copper that can be hardened

by a low temperature precipitation hardening heat treatment to produce excellent mechanical properties at high

strength levels.

2) condition:

Can be supplied in annealed condition (Condition A), or heat treated as follows:-

Condition H900 (900°F) Condition H925 (925°F) Condition H1025 (1025°F) Condition H1075 (1075°F) Condition

H1100 (1100°F) Condition H1150 (1150°F)

AMS 5643 (17/4 PH) material should not be used in the annealed condition. This grade of stainless steel has a typical

density of 7.75kg/dm3 and is magnetizable.


2. Chemical Compostion:
GradeChemical Compsition  (Max %)
CSiMnPSCrNiCuMoNb
17-4PH
AISI 630
≤0.07≤1≤1.0≤0.04≤0.0315-17.53.0-5.03.0-5.0≤0.5≤0.45
3. Mechanical Properties:
ConditionYeild Strength    min MpaTensile Strength
min Mpa
Elongation(%)Hardness
(HB)
H9001,3101,17210388/444
H9251,1721,06910375/429
H10251,0691,00012331/401
H10751,00086213311/363
H110096579314302/352

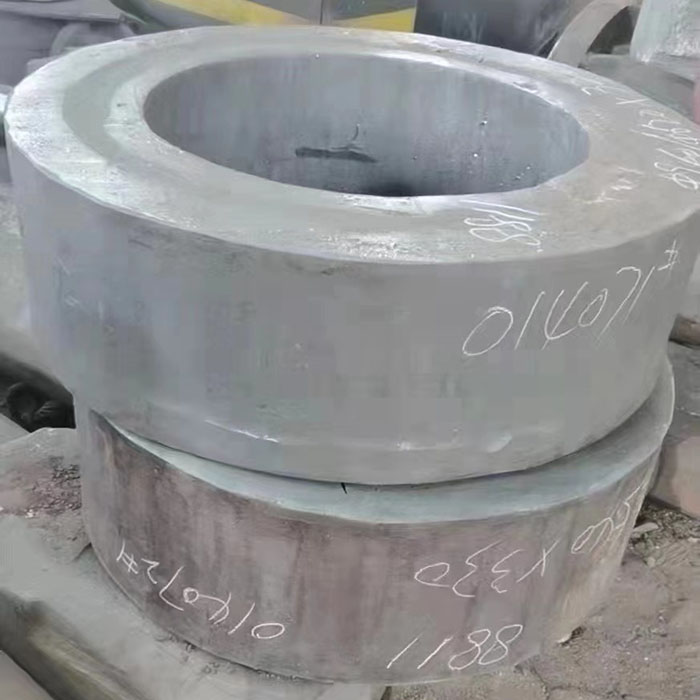

4. Production pictures:

037c6d23ff181d6a9f2b53b4d539c9f 1

5.  AMS 5643 Corrosion Resistance:

AMS 5643 (17/4 PH) is superior to straight chrome grades such as 410 and approaches the corrosion resistance of nickel

chrome grades. In many corrosive media, it is equal to class 302. Corrosion resistance will be affected by surface finish and

aging heat treatment. AMS 5643 (17/4 PH) welds very well and can be welded by all commercial processes. Preheating and

postheating practices of standard hardenable stainless steel grades are not required.

6.  AMS 5643 Application :

For applications requiring high strength and good corrosion resistance, as well as high fatigue strength, good wear resistance

and stress corrosion resistance. It is suitable for complex parts that require machining and welding, and require freedom of deformation.

Used in the aerospace, defense offshore oil  and  gas industries. It is used for mechanical parts such as guide parts, motor shafts, valve stems,

gears, etc.
